Wet High Intensity Magnetic Separators (WHIMS)





Request a quote for a Filter Press.

RFQ Form

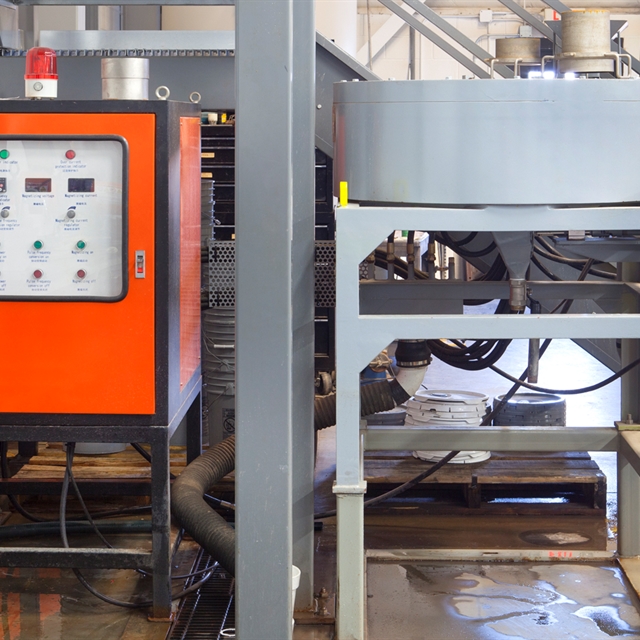

WHIMS Lab SSS-I-145

Lab Model SSS-I-145 WHIMS - Bench scale with Dual Jigg action, multiple matrices, and rectifier

Specification SSS-I-145
Way of use Unitary - Cyclic
Background field strength (T) 0-1.8 TESLA (18,000 Gauss)
Maximum output power )kW) 2300A,21V,48KW
Magnetic medium Magnetic stainless steel rod
Medium thickness (mm) 104mm
Pulse power (kW) 0.75
Stroke length 0 - 16mm, (4 stages)
Stroke frequency 0 - 300 times/minute
Cooling water pressure (Mpa) 0.1 - 0.3
Coil temperature rise (°C) < 50°C
Dimensions (L x W x H) (mm)
Magnetic separtor 985 x 925 x 1246
Control Cabient 900 x 760 x 1700
Weight if machine (Kg)
Magnetic separtor 820
Control Cabient 500

WHIMS Pilot SSS-I-0500

Model SSS-I-500 Pulsating Driving Power (KW) 0.4
Rated Intensity (T) 1.2 Blower Driving Power (KW) 0.4
Rated Magnet Power (kw) 40 Pulsating Stroke (MM) 2.2
Solids Capacity (TPH) 0.3 - 1.0 Pulsating Frequency (HZ-CYCLES.MIN) 0 - 16
% Solids W/W 10 - 40 Pulsating Stroke (MM) 0 - 140
Max Particle Size (MM) 0 - 1 Pulsation Frequency ADJUSTABLE
Rated Magnet Current (A) 1800 Water Pressure (MPA) ADJUSTABLE
Rated Voltage (V) 22 Water Consumption (M3/H) 0.2 - 03
Ring OD (MM) 500 Cooling Water (M3/H) 1 - 2
Ring Rotation Speed (RPM) 0 - 4 Equipment Weight (MT) 2
Ring Driving Power (KW) 0.4

WHIMS Lab 3K-23-11

Eriez Model 3K-23-11 control box incorporating silicon rectifier, DC switch, ammeter, and variable auto-transformer for operation from 230 volt AC input.
• Magnetic element box and two sets of interchangeable expanded metal elements - 18GA & 13GA.
• Hand-operated feed inlet and outlet valve.
• Detachable funnel.

Other voltages are available upon request.

Product Table

Item Name Part Number Description
WHIMS Lab SSS-I-145 512
WHIMS Pilot SSS-I-0500 512B
WHIMS Lab L-4-20 516

Eriez Model 3K-23-11 control box incorporating silicon rectifier, DC switch, ammeter and variable auto-transformer for operation from 230 volt AC input.

  • Magnetic element box and two sets of interchangeable expanded metal elements - 18GA & 13GA.
  • Hand operated feed inlet and outlet valve.
  • Detachable funnel.

For technical assistance or to request a quote, complete this form.



RFQ Form
