RF Cartridge Permanent Magnetic Separators

Eriez RF Cartridge Permanent Magnetic Separators

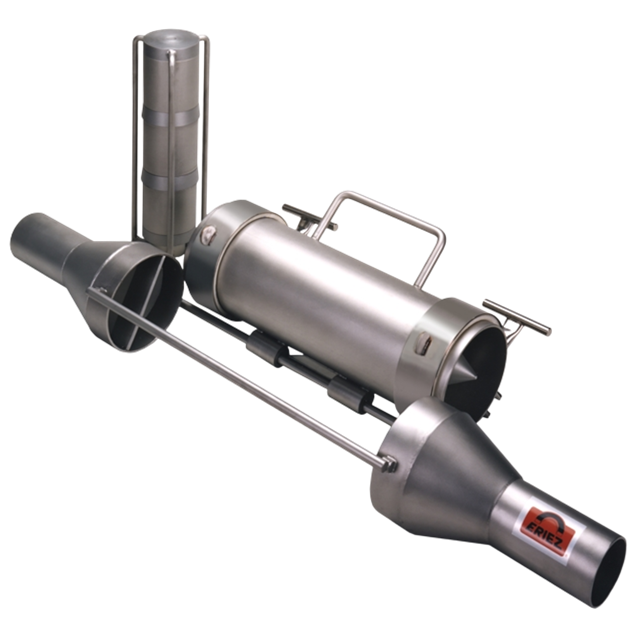

Eriez’ “RF” (Radial Field) Cartridge Magnet is ideal for removing tramp iron from dry, free flowing food or chemical products conveyed in pneumatic pipelines.

Material enters the housing, is distributed by a solid stainless steel cone and passes in close proximity to the magnetic cartridge.

Ferrous contamination is attracted and held by the magnet while the separated product continues past the magnet and out of the housing. The ferrous contamination remains on the magnet until the cartridge is removed and cleaned.

Compact overall dimensions allow the RF Cartridge Magnet to be installed in tight quarters. A section of pipe is removed and the magnetic separator put in its place

Features and Benefits

High-strength permanent tapered-step magnetic elements
Available with ceramic or Xtreme strength Rare Earth magnet material
Stainless steel housing construction
Removable magnet element with built-in handles for easy cleaning
Utilizes typical pneumatic conveyor couplings for easy operation and positive seal
Independent magnet element for easy handling
Standard units available for up to 25 psig (1.7 bar) operation
High pressure units available
Sanitary option available
