Electrostatic Separators

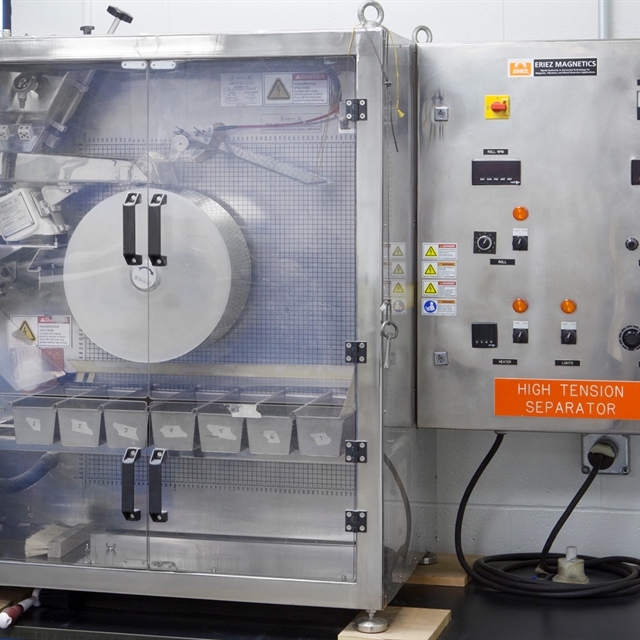

Eriez High Tension Electrostatic Separator

One polished stainless steel rotor, 14" diameter by 6" wide rotor.
One screen set and one plate set interchangeable with rotor; One DC electrode;
One cleaning brush for particle removal (no AC electrode for cleaning); Complete feed system with hopper and vibratory feeder; Housing in carbon steel with inspection doors, electrical interlocks, adjustable splitters to control the material flow from the rotor and conductor, non-conductor and middling discharge chutes; Variable speed drive;
Complete control in NEMA 12 enclosure with ammeter, voltmeter, and voltage adjuster for "0" up to 40KV D.C., negative polarity

Item Name	Part Number	Description
High Tension Electrostatic Separator	533	14" diameter by 6" wide polished stainless steel rotor with one screen set and one plate set interchangeables with rotor, and ships complete with controls in a NEMA 12 enclosure.

For technical assistance or to request a quote, complete this form.
