The company’s line features three styles of controls:
The UniCon series is designed to provide a precise amount of vibration for Eriez vibratory feeders as well as competitive electromagnetic feeders. These controls accommodate the vast majority of industry applications. Eriez’ full or half wave operation capability allows a plant to operate one control while competitive units provide half wave operation only. Eriez can modify or custom-design an electromagnetic feeder control to suit your specific application.
The single base model UniCon replaces many older style controls and offers more features. Its compact design and standard features address most customer applications. The unit is packaged in a NEMA12 (IP54) enclosure and carries CE, CUL and UL certification while the chassis enclosed model is CE certified. It can be configured for either 115V or 240V operation, full or half wave output operation and can be operated either from a manual potentiometer on the front of the control box or an internal 4-20mA or 0-10V DC signal.
Features:
Recommended for:

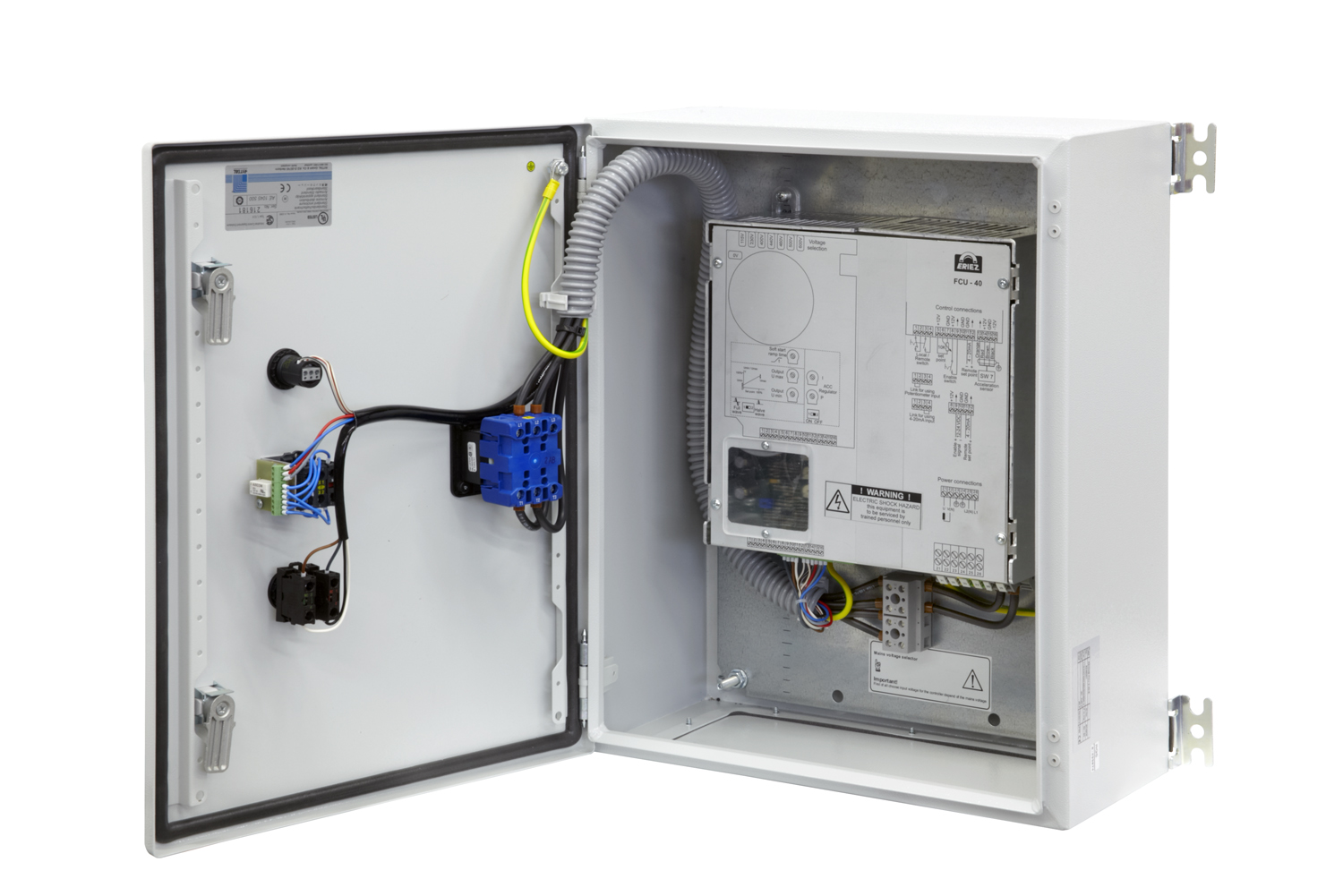

The UniCon HC Control extends the range of the UniCon family to include controls that have the majority of features required built into a standard design. The UniCon HC has the ability to operate feeders with a voltage and amperage range that go beyond the original UniCon control with precision.

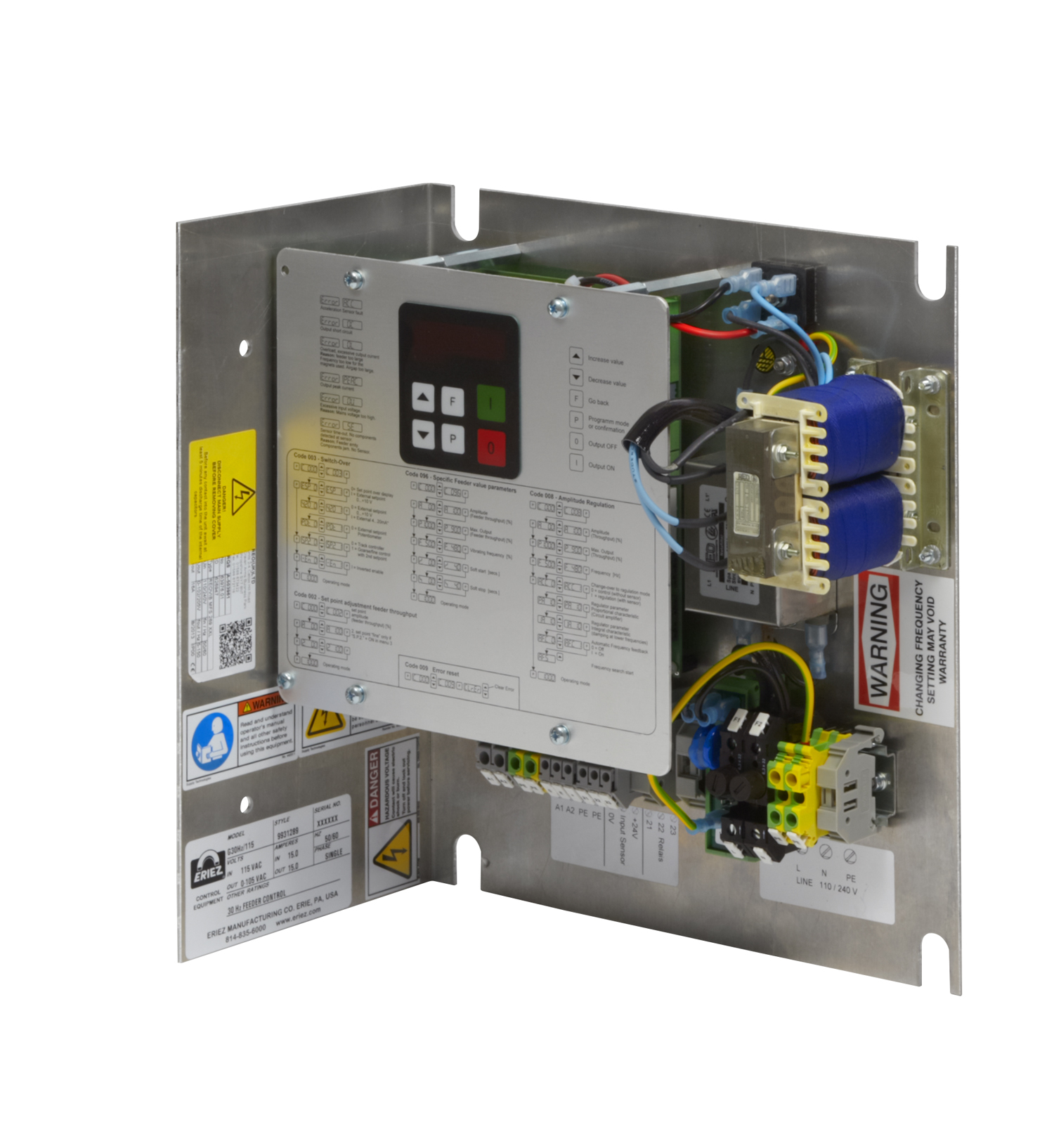

Accepts up to 12 amps at full voltage. Controls are capable of auto sensing line voltage without on site programming and can operate at feeders frequencies of 30, 40, 50 or 60 Hz. The G-Series is equipped with soft-start adjustability which eliminates the feeder over-stroking during start up and shut down and prevents premature wear. For applications requiring rapid on/off cycling, settings can be altered for quicker cycle time.
Controls can be equipped with an accelerometer attached to the feeder. The accelerometer constantly reads the tray amplitude and communicates it to the control thereby preventing premature component wear.
Eriez Feeder, Conveyor & Screener Product Selection Guide
Controls for Electromagnetic Vibratory Equipment Brochure
